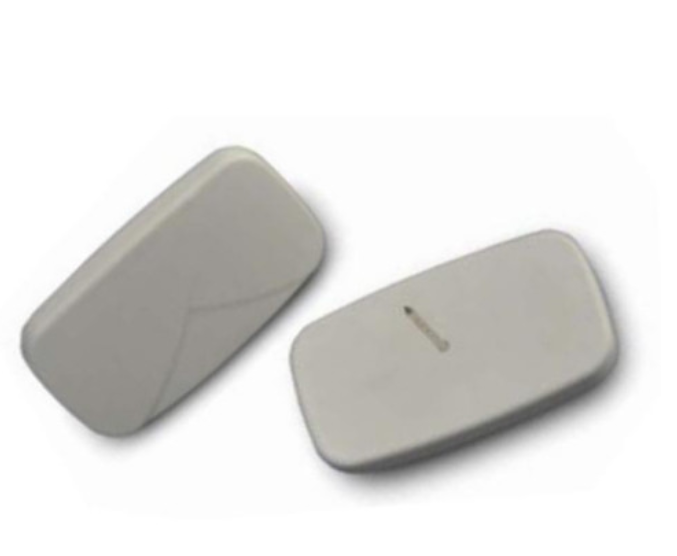

UHF RFID only hard tag HAT829 for apparel , ABS retail tag for shoes , EAS security tag , apparel tag 865~868MHZ
The UHF RFID pin HAT829 is a replacement of the traditional pin used with the EAS tag. It has a unique ID and can store additional information. It upgrades the EAS system, provides more advanced functions.Match to existing EAS tag to upgrade its RFID features, mainly applied for Apprarel and retail shrinkage,inventory management
| Specifications | |
| Protocol | ISO/IEC 18000-6C & EPC global Class 1 Gen 2 |
| Chip | H3/M4QT |
| Memory | H3(US):EPC 96 bits,USER 512bits,TID 96bits M4QT(EU):EPC 128 bits,USER 512bits,TID 96bits |
| Application | Apparel |

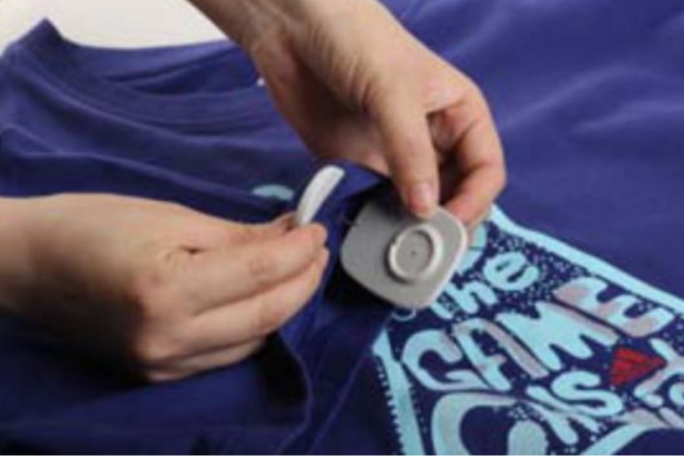

| Mounting way | Attaching to apparel with EAS tag |
| Read range | Up to 4 meter by fixed reader; Up to 2 meter by handheld reader |
| Frequency | 865~868(EU):902~928(US) |
| Size | 40× 22mm |
| Weight | 3 G |
| Material | ABS |
| Color | Grey,Black or customized |
| IP Rating | IP54 |
| Storage temp | -30℃ to 70 ℃ |
| Operation temp | -30℃ to 70 ℃ |
| Warranty | 1 Year |
