High Temperature RFID UHF Metal Tag OMT4015PK Industrial Grade

The product name：High Temperature RFID UHF Metal Tag OMT4015PK Industrial Grade
QQ：Whatsapp:0086-13906526515
Telephone: 0086-13906526515
Email: info@linkwinsmart.com
Time: 2022-04-14 19:00:26
CONTACT

Product Description

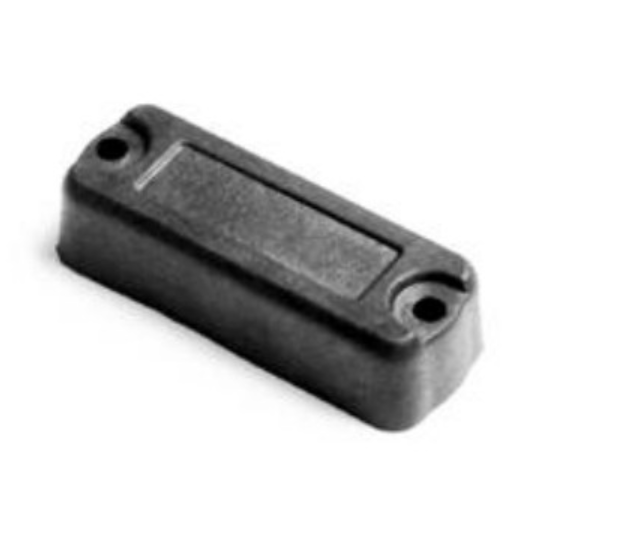

Industrial grade high temperature on metal tag OMT4015PK , RFID on metal label , RFID UHF metal tag

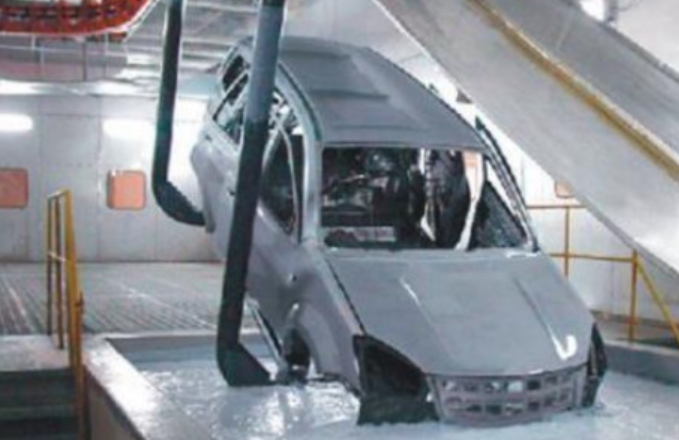

The tag is especially designed for Industrial grade high temperature environment ,it can stand the high temperature and chemical agency in auto production process,it is suitable for harsh environment application in manufacturing.

Specifications
Protocol	ISO/IEC 18000-6C & EPC global Class 1 Gen 2
Chip	Ucode 8
Memory	EPC 128bits,USER 0bits,TID 96bits
Application surface	Metal surface
Mounting way	Screw or 3M adhesive
Read range	Up to 6 meter by fixed reader; Up to 3 meter by handheld reader
Frequency	EU:865-868MHZ,US:902MHZ~928MHZ
Size	401510mm, hole size:2.5mm
Weight	6 G
Material	PPS
Color	Black
IP Rating	IP68
Storage temp	-40℃ to 70 ℃
Operation temp	-55℃ to 260 ℃,it can stand 260 ℃ for 30 minutes , and stand 180℃ for 120minutes
Warranty	1 Year
