RFID on metal tag

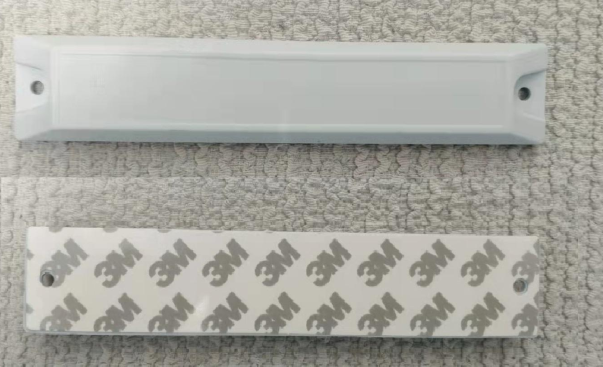

UHF Waterproof Single injection finished on metal tag OMT15320 (NEW)

  • The product name:UHF Waterproof Single injection finished on metal tag OMT15320 (NEW)
  • QQ:Whatsapp:0086-13906526515
  • Telephone: 0086-13906526515
  • Email: info@linkwinsmart.com
  • Time: 2022-04-14 19:01:44
  • CONTACT

By using Single injection finished technology,OMT15320 has high waterproof range
IP68 because of no welding seam and with special material and design,so it can work in

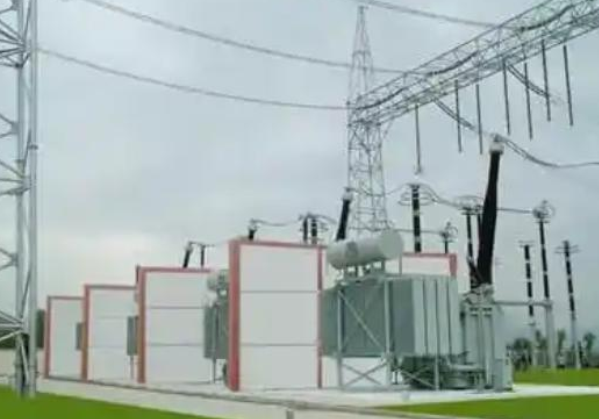

harsh environment,it is widely used in electric asset management and construction
industry and so on


Specifications
Protocol ISO/IEC 18000-6C & EPC global Class 1 Gen 2
Chip ALIEN HIGGS-EC
Memory EPC 128bits,USER 128bits,TID 32bits,UID 80bits,Acces PWD 32bits,Kill PWD 32bits
Application surface Metal surface/Concrete
Mounting way screw or back adhesive
Read range On metal surface: Up to 15meter by fixed reader; Up to 8 meter by handheld reader
Concrete:Up to 0.6 meter by fixed reader; Up to 0.3 meter by handheld reader
Frequency 860MHZ to 869MHZ/902MHZ to 928MHZ
Size 153*20*10 mm,Hole diameter:4mm
Weight 40 G
Material High performance polyester carbonate
Color Grey or customized
IP Rating IP68
Chemical resistance Alcohol resistance+Oil Resistance+corrosion resistance+vibration resistance 50HZ+abrasion
resistance
Resistance to pressure 60bar (1000N)
Storage temp -40to 80
Operation temp -40to 150 ; 1401 hour;1800.5 hour;20015 seconds
Warranty 1 Year
