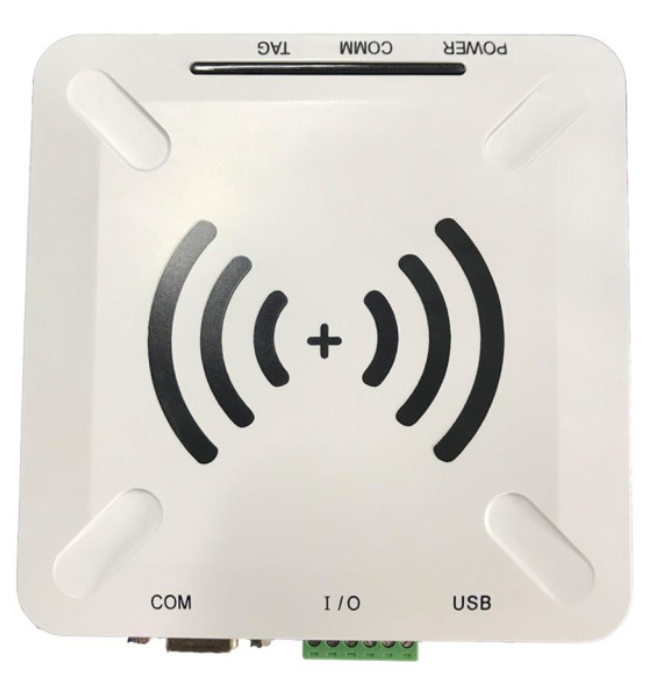

RFID desktop reader LRE-D01 , Wholesales USB 860~960MHz EPC GEN2 desktop uhf rfid reader writer access control reader
LRE-D01 is a high performance UHF RFID desktop all-in-one machine, Design based on high performance UHF chip, Full support for electronic tags complying with EPCglobal C1 Gen 2 ISO 18000-6C. Combined with proprietary and efficient collision processing algorithm, it can achieve fast read and write processing of electronic tags while maintaining high literacy rate,it can be widely used in personal identification, conference sign-in system, access control system, anti-counterfeiting system and production process control and other radio frequency identification (RFID).
physical parameter | |
Size: ( MM) | 120( L) *120( W) *25( H) |
Antenna | 3DB Ceramic antenna |
Shell | White plastic case |
Performance parameter | |
Protocol | EPCglobal C1 Gen 2 ISO 18000-6C |
frequency | 865~868MHz/902~928MHz |
Frequency hopping way | Works in broad spectrum frequency hopping (FHSS) or fixed frequency transmission mode |
RFID read speed | Multi - label identification performance>50 pcs |
Label the cache | 330pcs @longest 128bitsEPC or 100pcs@ longest 496bitsEPC |
RSSI strength testing | support |
Reader operation mode | Master slave/stand-alone/trigger mode |
DC power supply (not required for USB port communication) | 9V~12V |

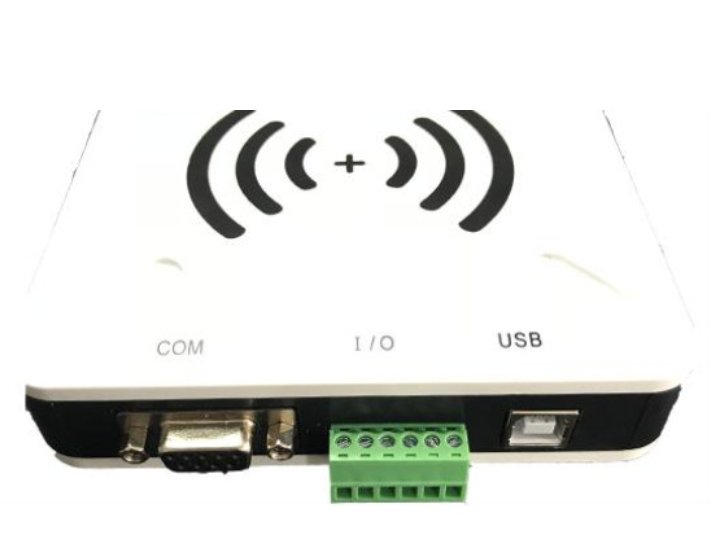

Communication interface | USB/232/wiggins/485/network port |
Indicator light | Data light, power light, communication light |
Enviromental parameter | |
Operating temperature | -20~+70℃ |
Storing temperature | -20~+85℃ |
Operating humidity | 5%~95%RH |
